Key features of this new pipe inspection camera:
- Unique, professional and compact design.
- The cable reel is out of the box, easy to clean and won’t cause dirty in the box.
- Easy to carry; convenient transportation.
- Comes with a smart braking system.
- The keyboard is very easy to operate, like a laptop.
Feature
- 1/3 inch Sony CCD camera, 120° wide vision angle
- Stainless steel camera head, IP68 waterproof level
- Sapphire glass lens cover, 12 high light white LEDs
- Diameter of camera: 23 mm
- Two plastic guides for camera head, Φ46mm & 80mm
- 7” LCD color monitor, with image rotate button
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- With microphone for local audio recording
- Rechargeable battery lasts up to 6 hours
- On-Screen date and time
- 20, 30 or 40m fiberglass φ5.2mm push rod

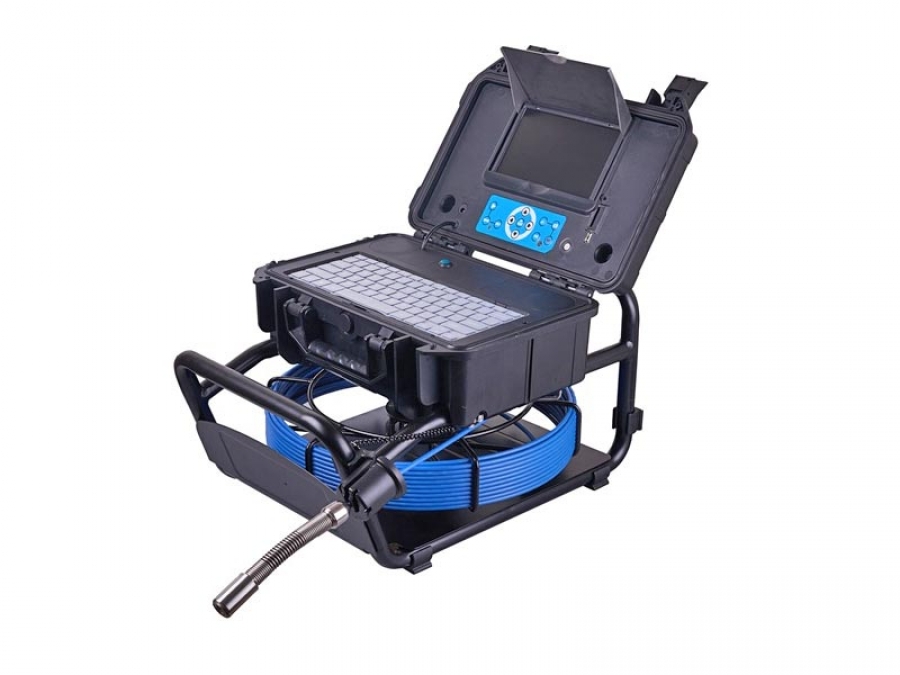

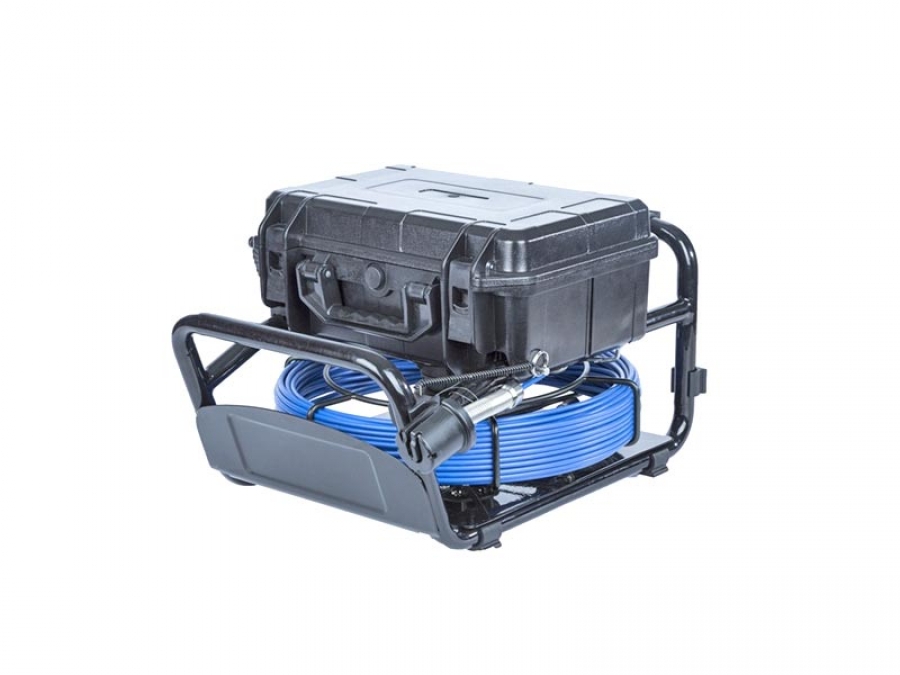

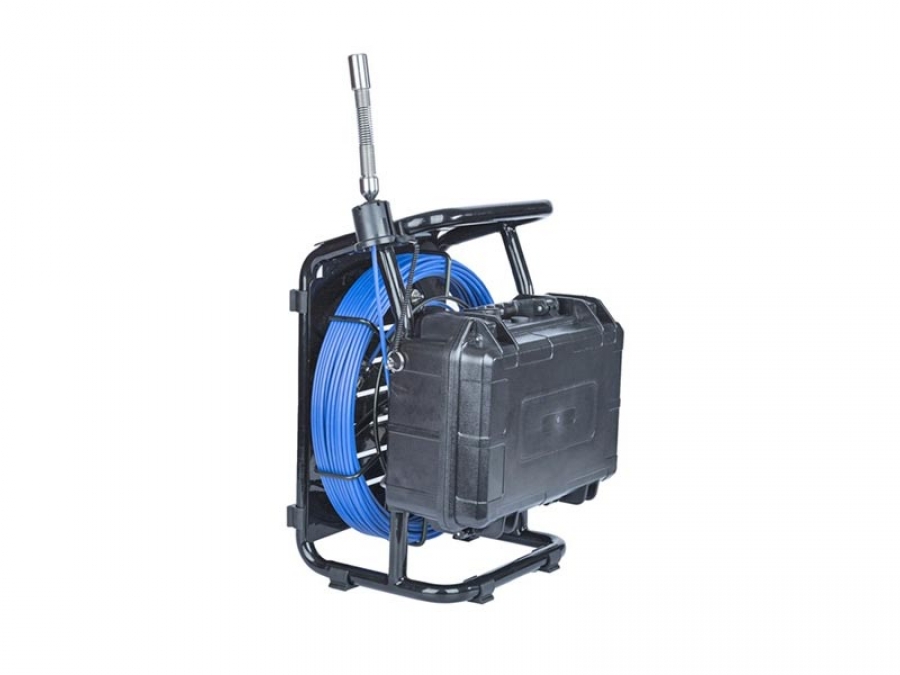

- Rotatable cable reel mounted in case for convenient operation
- Ability to go through 90°bends in Φ45mm pipes
- With smart braking system
- With on-screen distance counter
- With Keyboard for text input (English)
- Whole system waterproof (box closed)
Optional features/parts:
- Camera head with built-in 512hz sonde
- Self-leveling feature (same size)
- Long spring camera head for better flexibility while passing through 90 degree bends
- 38mm camera head for using in larger pipes
Applications:
- For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
- For Maintenance of Plumbing and Wiring behind walls
What’s included?
- 1 x 23mm Camera head
- 1 x 20/30/40m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger

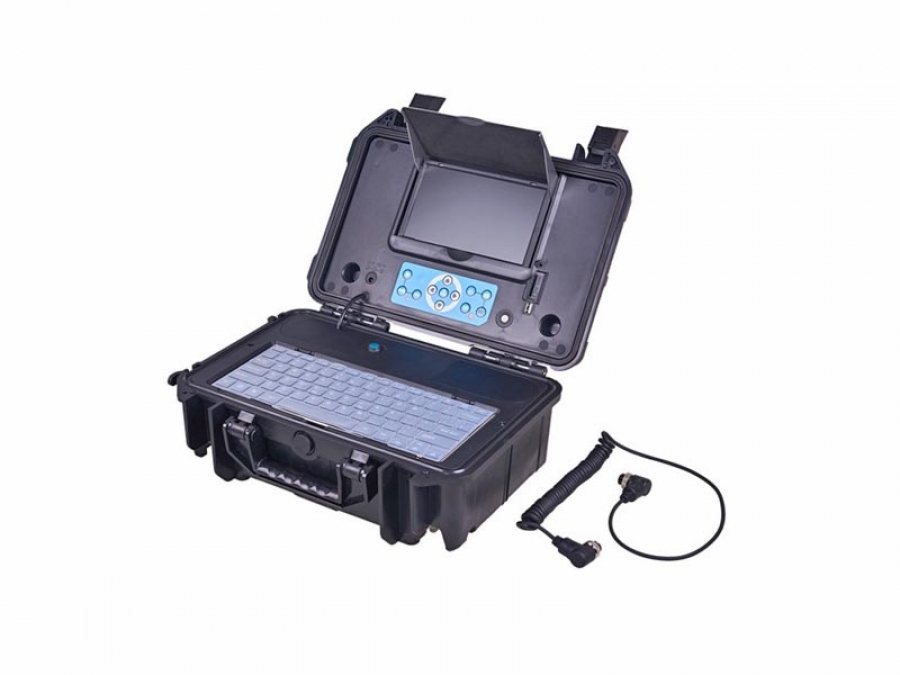

- 1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 16-17.1kg (slight different for 20m, 30m and 40m unit)
- Carton Measurement: 55 x 44x 35cm
Specifications:
- Camera Head
- Camera Size: Φ23mm×45mm
- Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
- Sensor: 1/3" Sony, 480 TV-Line
- Pixel: 752H * 582V
- View Angle: 120°
- Transmitter: 512hz built-in(selectable)
- Focus Distance: 20cm (approx)
- Depth-of-Field: 100cm(approx)
- Front Lens: Sapphire glass
- Water-Proof: 20m Under Water(Camera fix on Cable)
- Shell Material: #304 stainless steel
- Lighting: Built-in 12×LED(White)
- Operating Temperature: -10~50℃/+14~+122℉
- Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
- 20/30/40M fiberglass rod cable with on-screen distance counter
- Dia. of push cable: 5.2mm
- Material of cable: Fiberglass covered by PP
- Operation: Mounted and rotatable in the case
LCD Monitor
- Screen: 7-inch 16:9 Super bright HD color LCD screen
- Resolution: 800x480 RGB
- Mirror and Flip: support image mirror, and flip
- Video Resolution: 720*576 25fps Max.
- Video Encoding: H.264
- Photograph: 720*480/720*576
- Audio Recording: local sound record
- Output: TV and Audio output
- On-screen date and time
- On-screen meter/ft. distance display(optional)
- External memory: support SD memory card up to 32GB
- Data output: USB 2.0 to PC
- Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Battery Pack
- Power Input: DC 9V-12V
- Battery Capacity: 7.4V 6600mAh Li-on Battery
- Power Output: 6-12V DC, USB 5V
- Work/Charge time: 8 hours
Tool Box
- Size: 517 x 434 x 200mm (LxWxH)
- Box Color: Black or Yellow (selectable)
