It’s widely used in Pipeline, Drain, Sewer, Duct, Chimney, Machinery and Building Inspection
Key Features:
- 1/4" CMOS camera, 55° vision angle, 720H x 576V pixels
- Camera Size Φ14mm×26mm（Main body)
- Sapphire glass lens cover, 6 white LEDs
- Focus Distance 10cm (approx)
- Water proof level, 10m underwater (camera fix on cable)
- Push cable dia. 4.8mm
- 7” LCD color monitor
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- Video image rotate button
- With microphone for audio recording
- Rechargeable battery lasts up to 8 hours
- On-Screen date and time
- On-screen distance counter, Meter/feet
- 20m fiberglass push rod
- Rotatable cable reel mounted in case for convenient operation
- Waterproof ABS suitcase with all parts included
Applications:
- For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection
- For Maintenance of Plumbing and Wiring behind walls
What’s included?
- 1 x 14mm Camera head
- 1 x 20m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 11kg
- Carton Measurement: 55 x 49 x 26cm
Specifications:

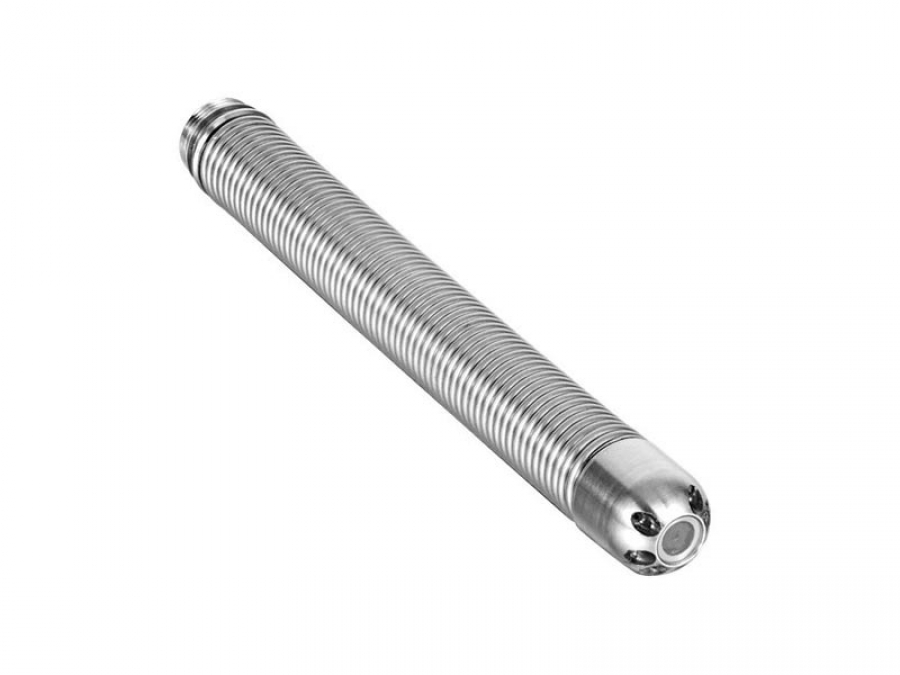

- Camera Head
- Camera Size: Φ14mm×26mm（Main body）
- Camera Total Length: 80mm (include spring)
- Sensor: 1/4" CMOS, 400 TV-Line
- Pixel: 720H x 576V
- View Angle: 55°
- Focus Distance: 10cm (approx)
- Depth-of-Field: 20cm(approx)
- Front Lens: Sapphire glass
- Water-Proof: 10m Under Water(Camera fix on Cable)
- Shell Material: Aluminum
- Lighting: Built-in 6×LED(White)
- Operating Temperature: -10~50℃/+14~+122℉
- Storage Temperature: -20~60℃/+4~+140℉

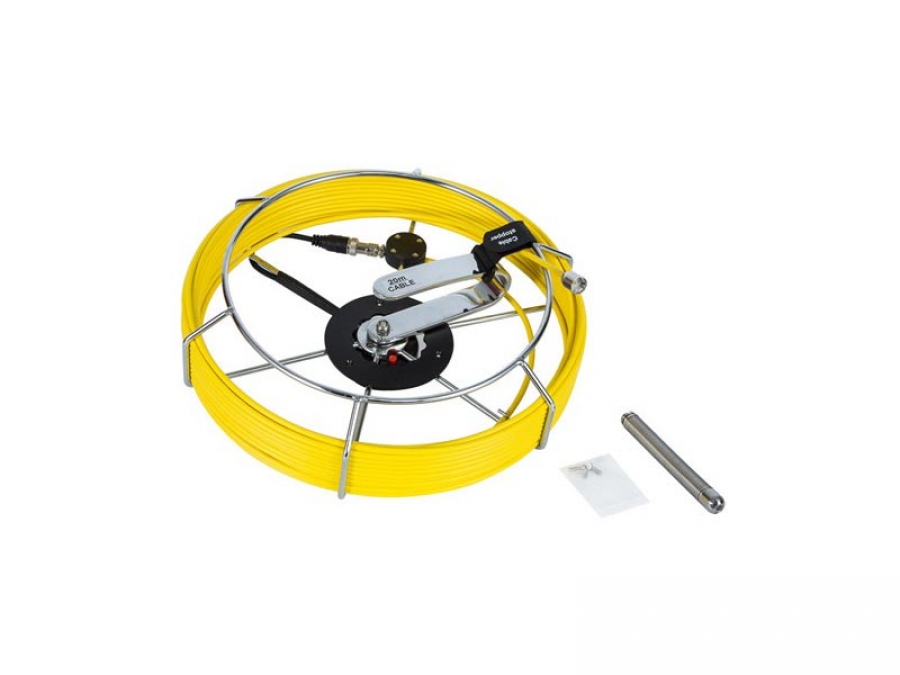

Cable Wheel
- 20M fiberglass rod cable with on-screen distance counter
- Dia. of push cable: 4.8mm
- Material of cable: Fiberglass covered by PP
- Operation: Mounted and rotatable in the case
LCD Monitor
- Screen: 7-inch 16:9 Super bright HD color LCD screen
- Resolution: 800x480 RGB
- Mirror and Flip: support image mirror, and flip
- Video Resolution: 720*576 25fps Max.
- Video Encoding: H.264
- Photograph: 720*480
- Audio Recording: local sound record
- Output: video output
- External memory: support SD memory card up to 32GB
- Data output: USB 2.0 to PC
- Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Battery Pack
- Power Input: DC 9V-12V
- Battery Capacity: 7.4V 6600mAh Rechargeable Li-on Battery
- Power Output: 6-12V DC, USB 5V
- Work/Charge time: 8 hours
Tool Box
- Size: 517 x 434 x 200mm (LxWxH)
- Box Color: Black or Yellow (selectable)
